Clip-on CAN Bus Interface

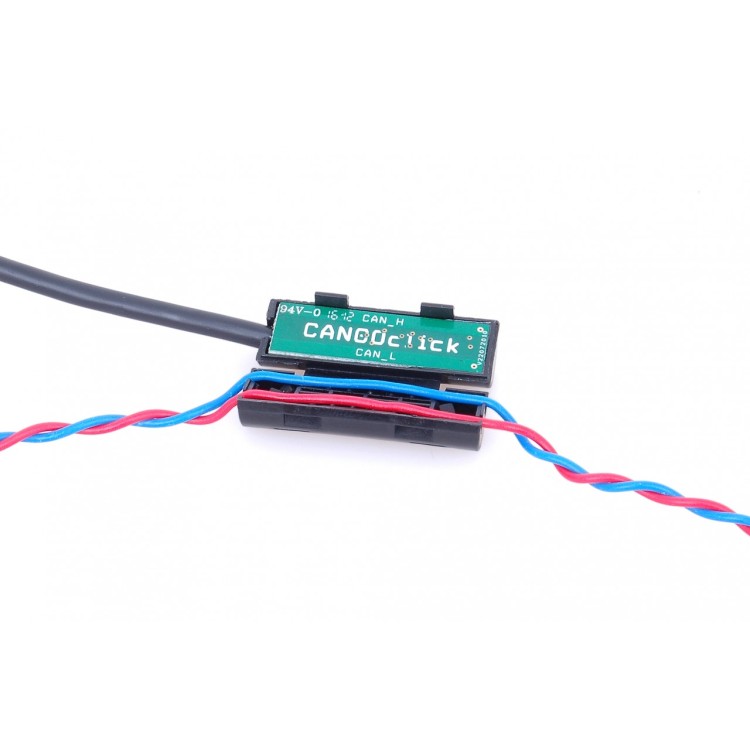

The Clip-on CAN Bus Interface is a versatile and non-intrusive solution for connecting your VBOX video logger to any vehicle with a CAN Bus system. Designed for quick and easy installation, it eliminates the need for cutting, splicing, or modifying wires, preserving the integrity of your vehicle's warranty.

This Omni-directional cable operates at any voltage and ensures no intrusive signals are transmitted onto the vehicle's CAN Bus, avoiding potential issues such as dashboard warning lights. While the clip design allows for easy attachment and removal, frequent handling is not recommended to maintain clip integrity over time.

Our CAN database files can be downloaded from here.

Please choose between the following connector options:

• RLACS182: Unterminated

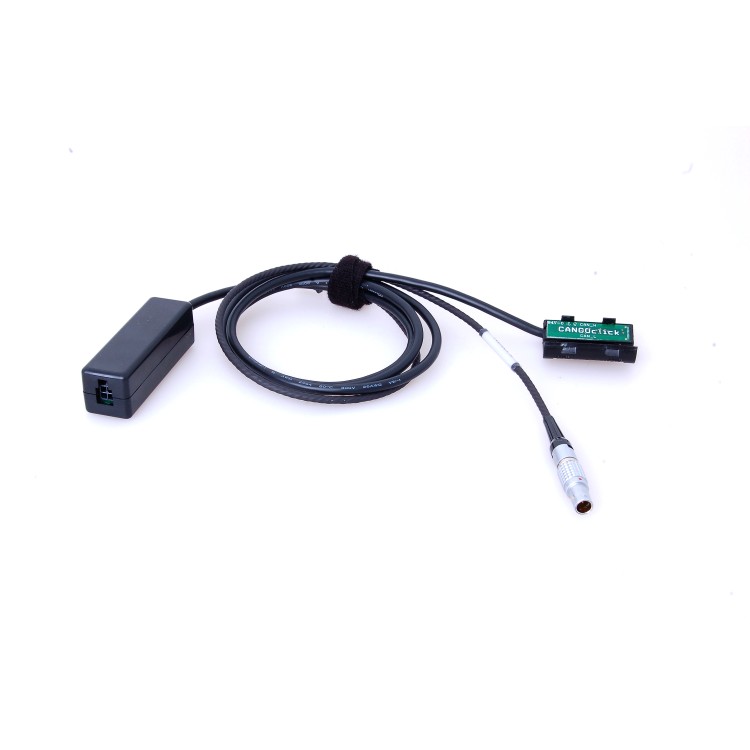

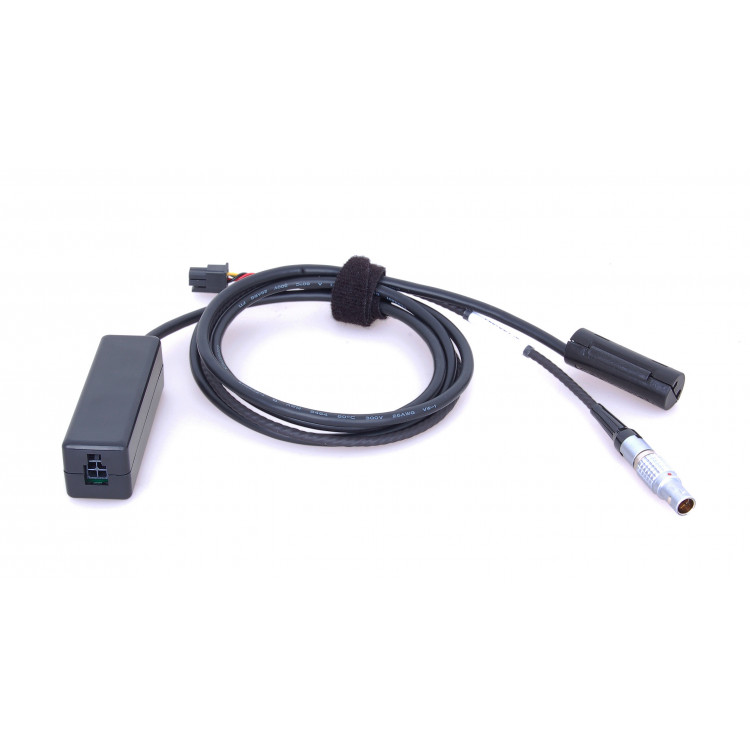

• RLACS182L: Lemo connector for use with VBOX Video HD2 & Video VBOX Pro
• RLACS182H: Hirose connector for use with VBOX HD Lite*

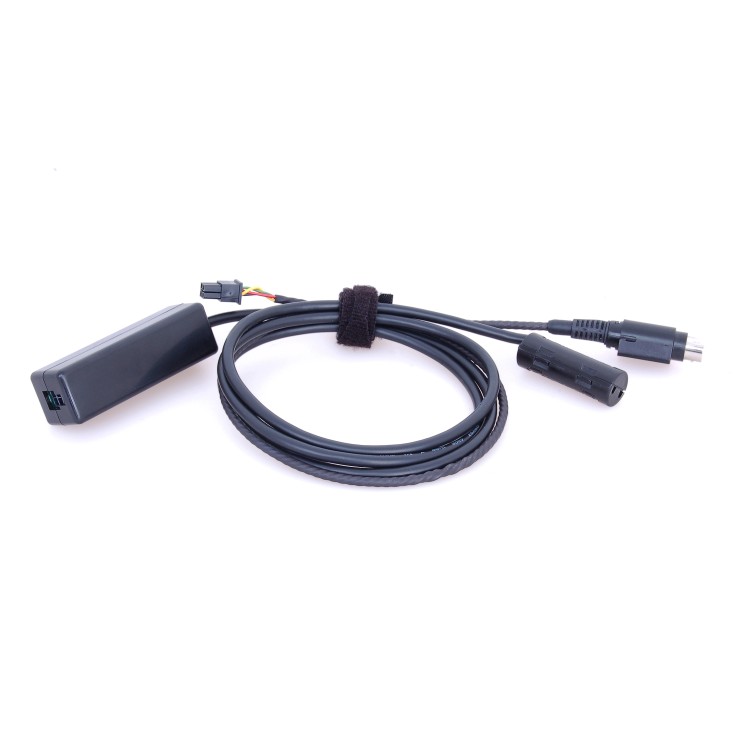

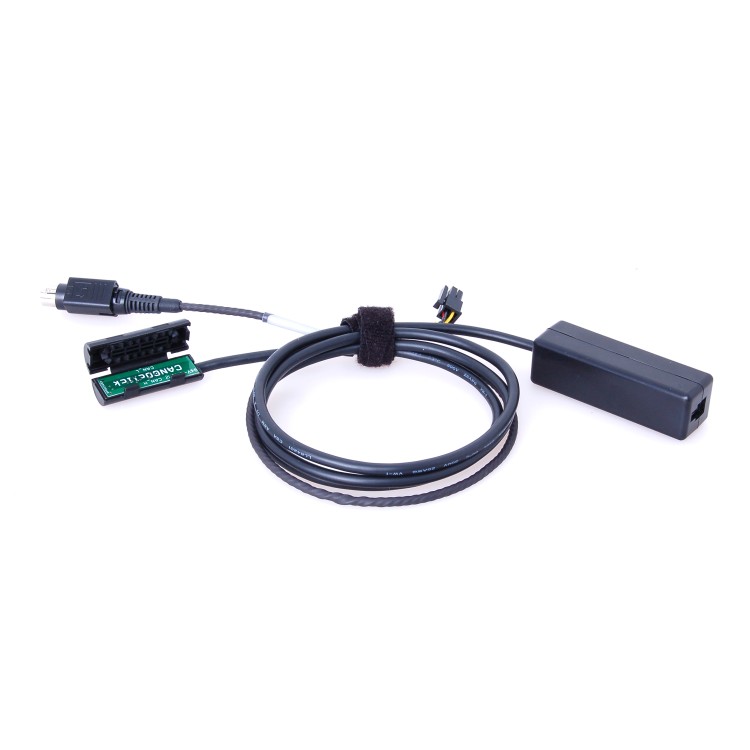

• RLACS182M: Mini-Din connector for use with Video VBOX Lite*

*RLACS182M and RLACS182H are built to order and will be available within 10 working days from receipt of your order.
