VBOX Mini Pit Lane Timer

This pit lane timer has a much smaller form factor than the original VBOX Pit Lane Timer and can be used in vehicles where there is no space to mount a full-size display.

The display itself is only 50 mm x 50 mm x 27 mm, which allows you to mount the device in tight spaces. VBOX Mini Pit Lane Timer retains the full functionality of the original larger display, including the ability to log a summary of pit stop times to the on-board SD card for post session review.

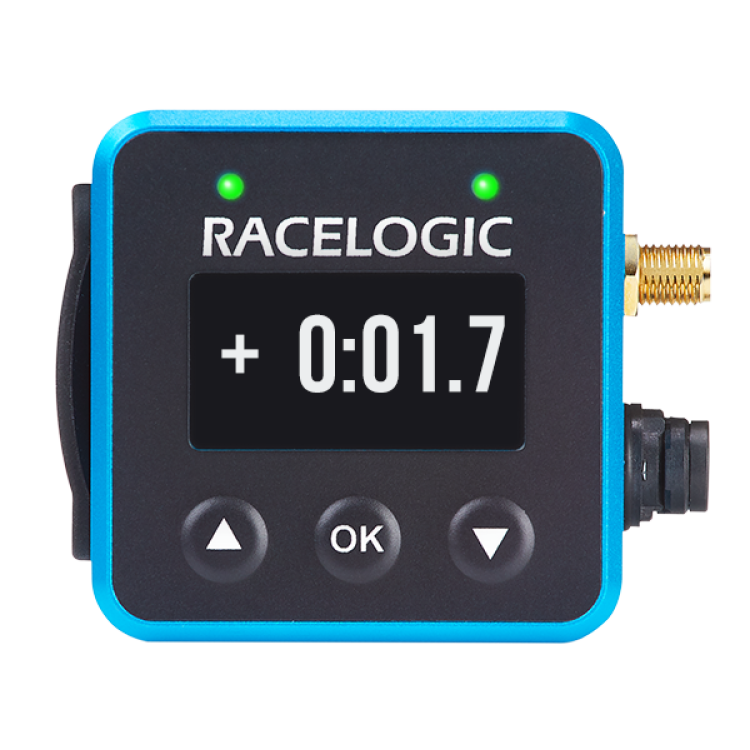

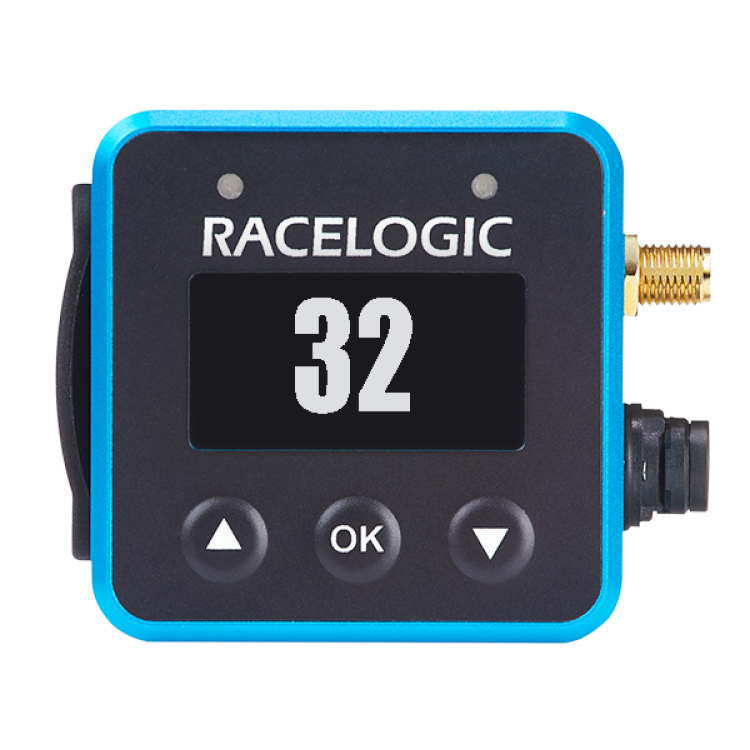

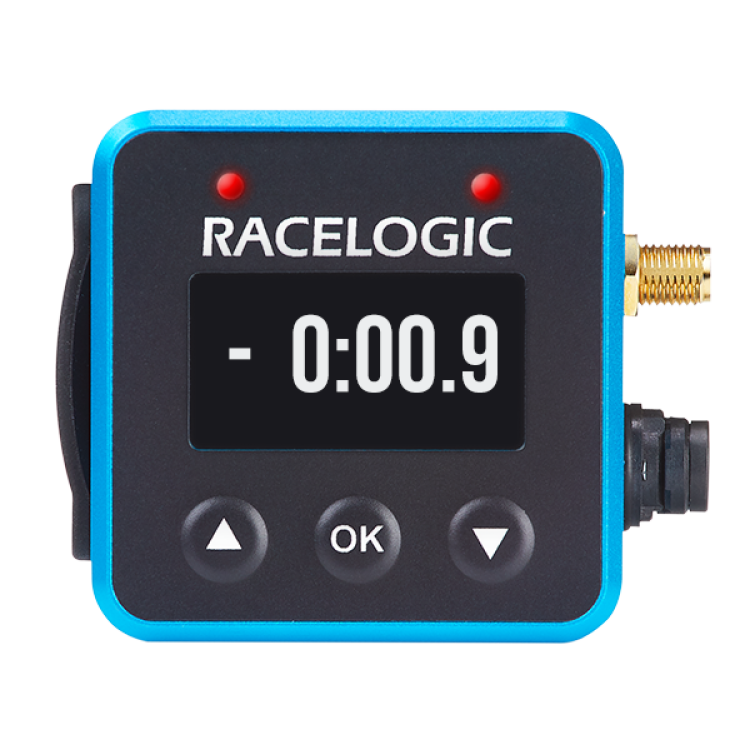

VBOX Mini Pit Lane Timer recognises the preset pit lane entry point as it is crossed, displays the velocity until the car comes to a stop and then counts down to zero to indicate when it is time to get out again. In addition, the high brightness LEDs change colour and intensity, giving the driver an indication whether the pit lane exit will be reached too early, too late, or exactly right.

The timer logs stint and pit lane times to SD card.

Features

• 10 Hz data logging to SD card

• Helps to avoid pit stop penalties

• Prompts you when to leave the pit box, warning in advance if you are going to cross the line too early

• Easy operation

• Motorsport Hirose connectors

• Low power consumption: 1.5W

• Multiple mounting options

• Free Circuit Tools data analysis software (Windows, macOS, and iOS)

Download the datasheet here.

More info on the VBOX Motorsport website.

Package content

• VBOX Mini Pit Lane Timer unit
• External Antenna
• Lightweight Suction Mount
• Cigar Lighter Power Cable (2 m)
• 8 GB SD Ultima Pro Memory Card
